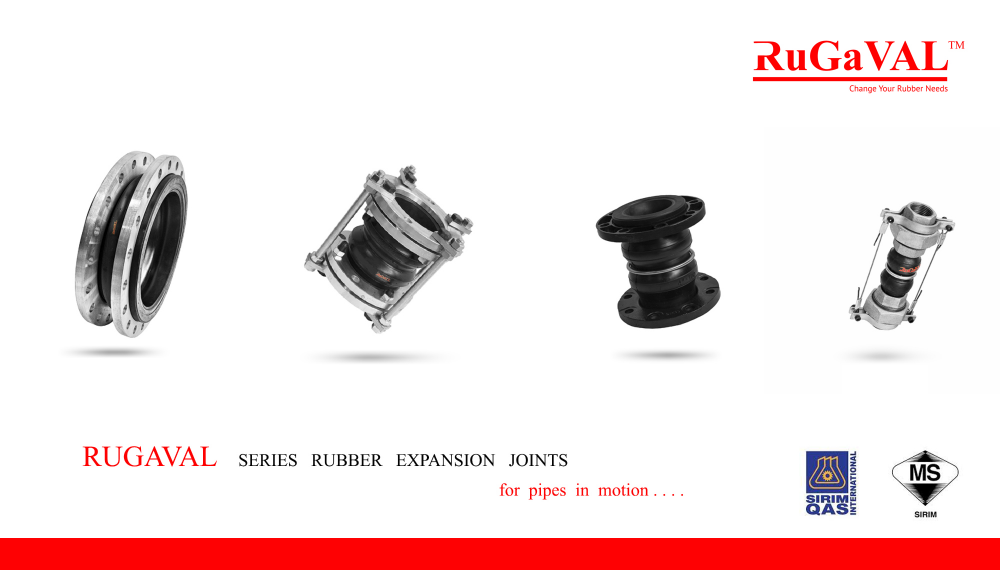

RUGAVAL Superflex series are designed for toughest demanding

industial applications. STS Series design becomes a techno-economic

solution with a full rubber flange easier and more effective to install, as

this full rubber flange distribute the sealing surface and makes easier a

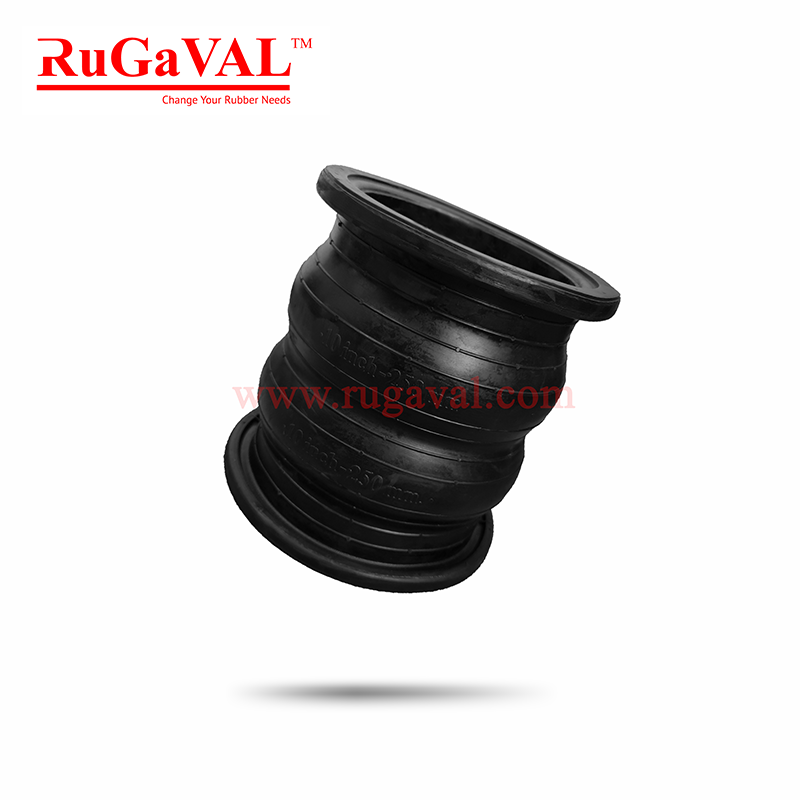

perfect sealing. On this type of piece, the rubber flange covers the entire

flange of the piping on which it is mounted, distributing the sealing surface

and improving the seal and airtightness.

1). Absorb pipe / Movement / Stress

2) Decrease Systems Noise

3) Isolate Vibration

4) Compesate alignment / offset

5) Eliminate Electrolysis

6) Protect Against Start up / Surge Forces

Characteristics and Properties

• Mould manufacturing.
• Dimensions up to DN300 (12”).
• Working pressures up to 20 bar (300 psi).
• Floating type flanges.
• Carbon steel flanges.

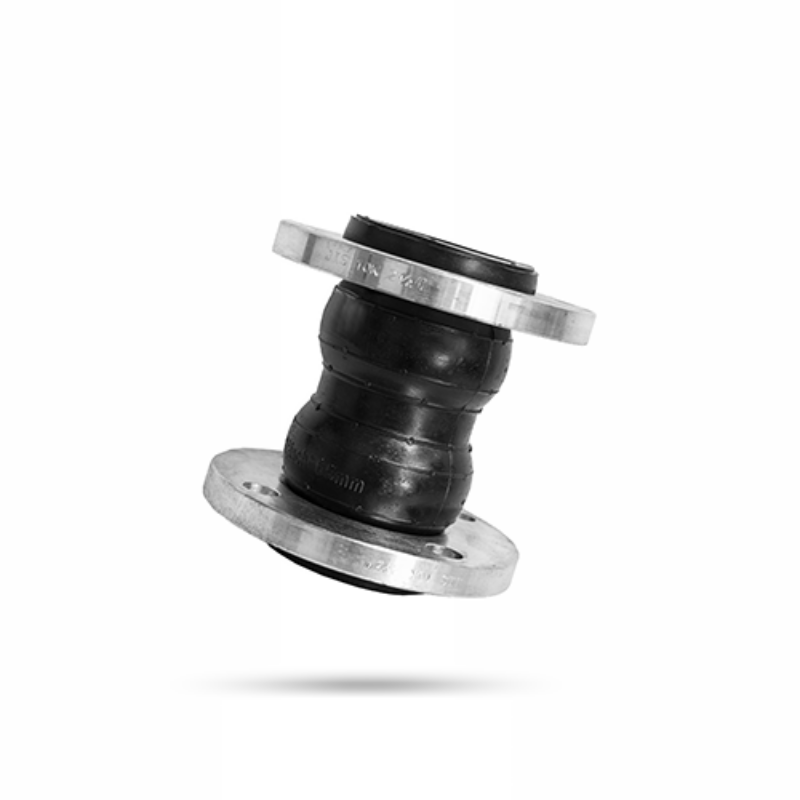

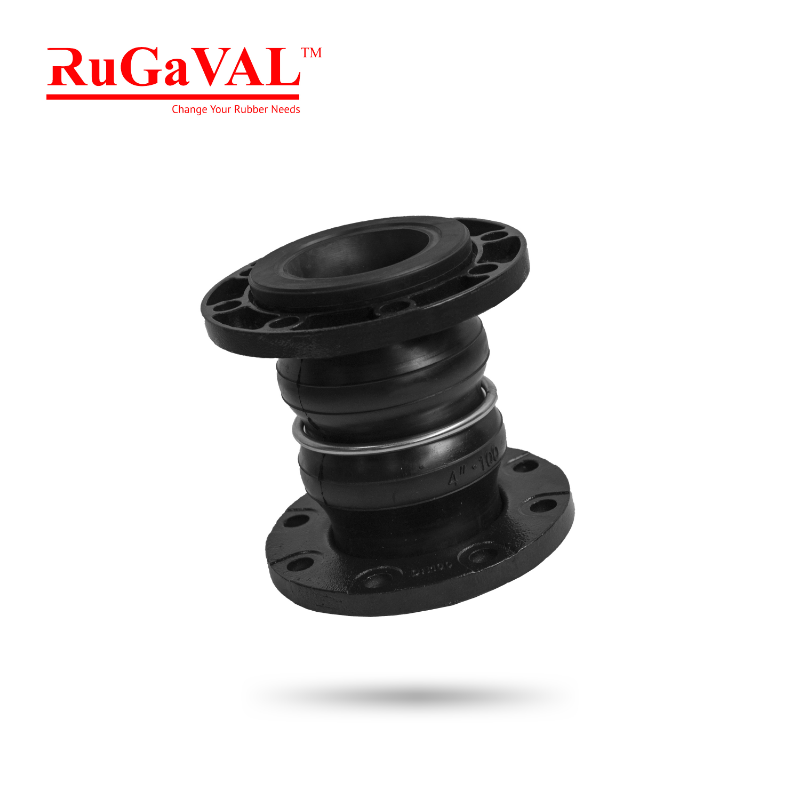

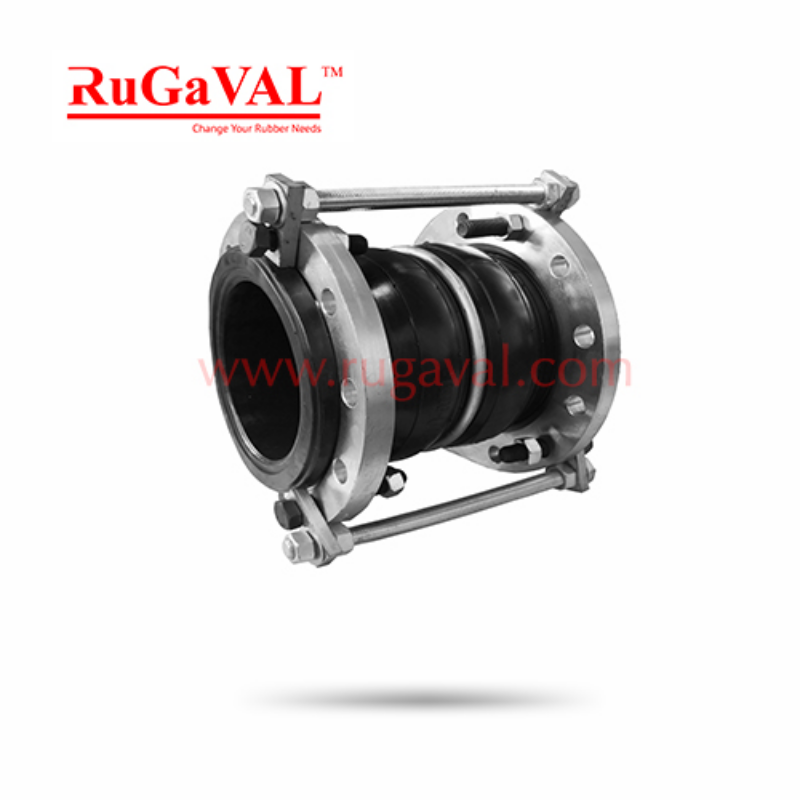

• Single and Double arch.
• Recommended working temperature up to 80 °C (180 °F)
